LOGITECH Tap Scheduler 10.1" IPS Touchscreen Meeting Room Scheduling Panel Graphite 952-000091

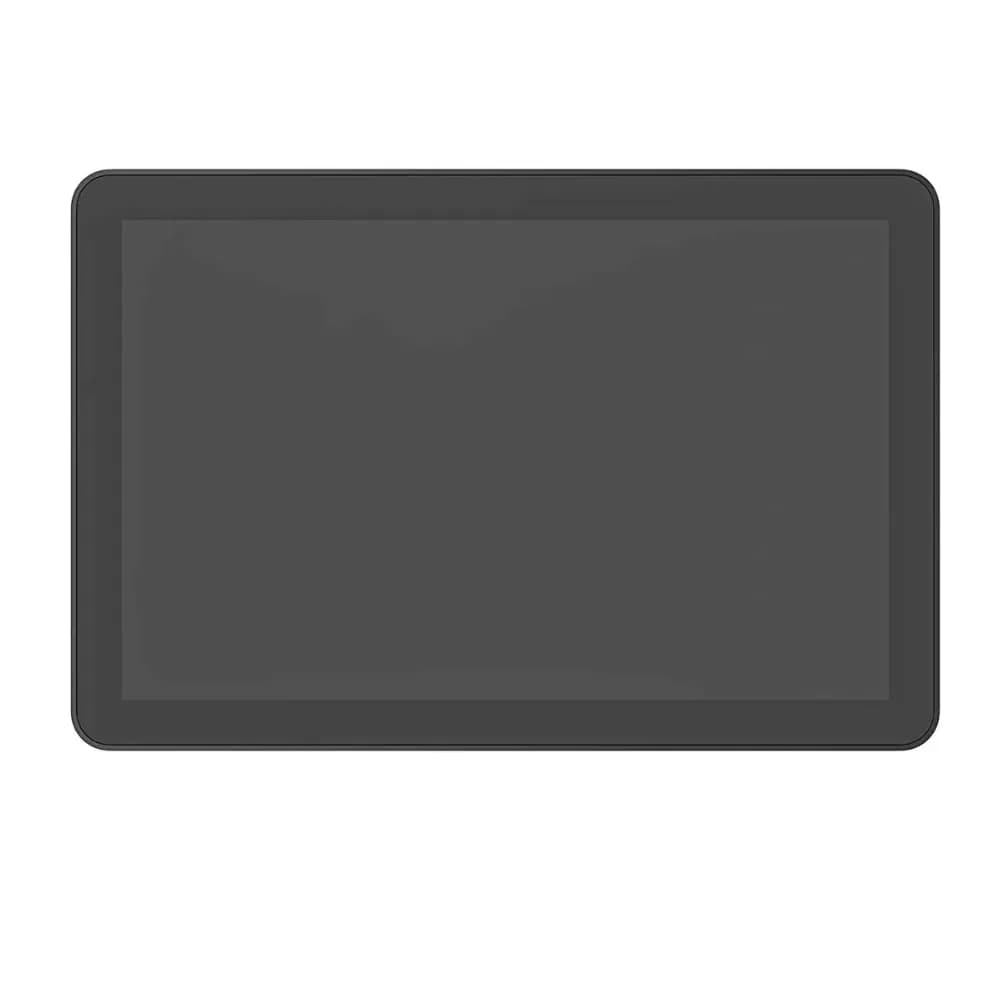

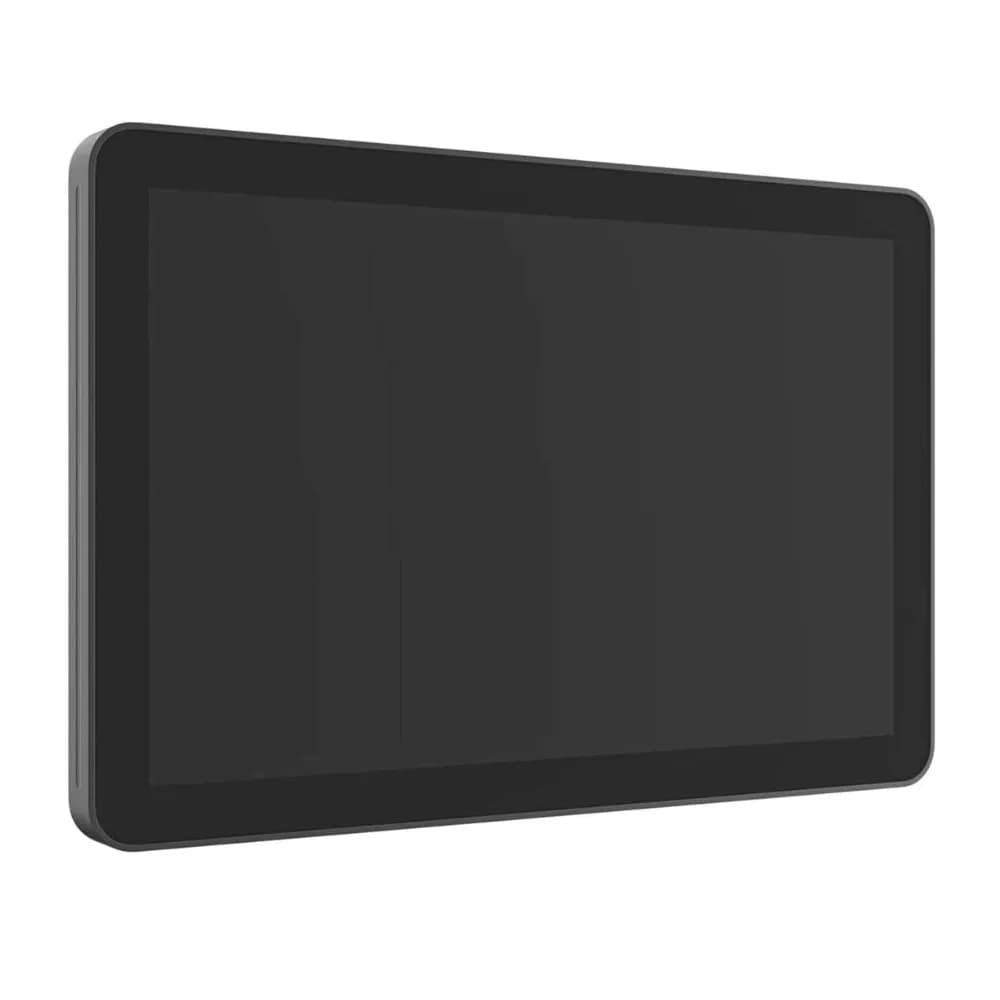

The Logitech Tap Scheduler is a purpose-built scheduling panel designed for meeting rooms, providing a dedicated 10.1-inch touch interface for viewing meeting details and reserving rooms for ad hoc or future meetings. Its IPS LCD display with LED backlighting provides a 1280 × 800 resolution, 400-nit brightness, 1000:1 contrast ratio, and 85° viewing angles. The capacitive 10-point multi-touch screen features an oleophobic anti-fingerprint coating and a flat 0° mounting position, while integrated LED availability indicators help users quickly identify open rooms from a distance.
Tap Scheduler supports Logitech Room Booking, Microsoft Teams Panel, Zoom Rooms Scheduling Display, Robin, Appspace, RICOH Spaces, Envoy Rooms, Korbyt, and Comeen. Its Power over Ethernet connectivity uses IEEE 802.3af Type 1 Class 3 and combines power and network connectivity through a single cable. The device supports 10/100 Mbps Ethernet, Wi-Fi 802.11 a/b/g/n/ac/ax, and Bluetooth 5.0 reserved for future use. Flexible cable routing and included mounting options support glass, surface, and mullion installations, while Logitech CollabOS and Logitech Sync provide platform and remote device management capabilities.
Key Features
- Purpose-Built Scheduling Panel – Designed specifically for meeting-room scheduling and room availability management.
- 10.1-Inch IPS Touchscreen – Features an IPS LCD panel with LED backlighting and a spacious touch interface.
- 1280 × 800 Resolution – Provides clear display resolution for meeting and scheduling information.
- 10-Point Multi-Touch – Capacitive touchscreen supports 10-point multi-touch interaction.
- Anti-Fingerprint Coating – Oleophobic surface helps maintain a cleaner touchscreen.
- LED Availability Indicators – Colored LEDs provide quick visibility of room availability from a distance.
- Multiple Scheduling Platforms – Supports Logitech Room Booking Microsoft Teams Panel Zoom Rooms Scheduling Display Robin Appspace RICOH Spaces Envoy Rooms Korbyt and Comeen.
- Power over Ethernet – Uses IEEE 802.3af Type 1 Class 3 PoE for power and network connectivity.
- Flexible Installation – Supports glass surface and mullion mounting options.
- Flexible Cable Routing – Cable exit can be positioned horizontally vertically or centrally.
- Logitech CollabOS – Runs on the Logitech CollabOS platform.
- Logitech Sync Management – Supports remote device management through Logitech Sync.
- Integrated Sensors – Includes an accelerometer and ambient light sensor.
- VESA Compatibility – Supports a 100 × 100 mm FDMI VESA mount.
- Graphite Finish – Professional Graphite colour with plastics containing 54% post-consumer recycled material.
- Enterprise Security – Includes AES-128 full disk encryption PKI-based secure data encryption device attestation and Arm TrustZone hardware-level protection.
