| Model |

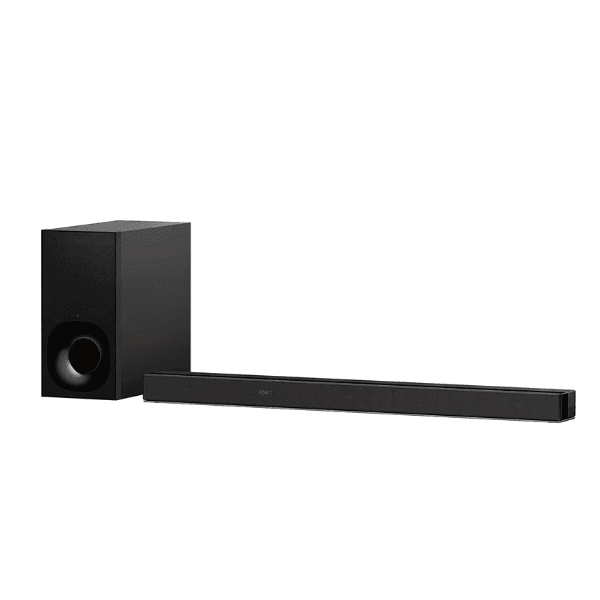

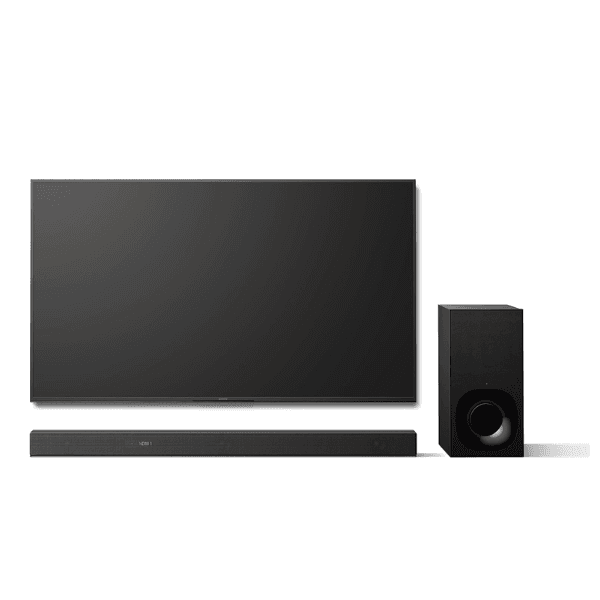

Sony HT-Z9F |
| Channels |
3.1 (3 front channels, 1 subwoofer) |
| Total Power Output |
400W (300W for soundbar, 100W for subwoofer) |
| Amplifier Type |
S-Master HX |
| Speaker Configuration |

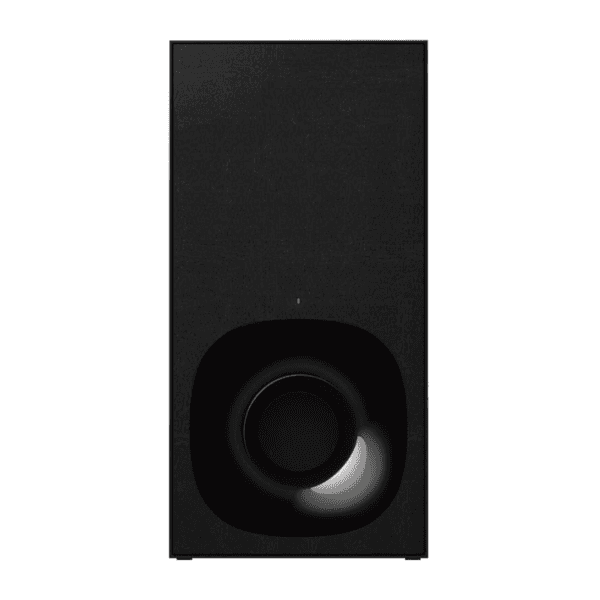

Soundbar: 3 x 1.8" (46 mm) cone drivers; Subwoofer: 6.3" (16 cm) driver in a bass-reflex enclosure |
| Audio Technologies |
Dolby Atmos, DTS:X, Vertical Surround Engine, S-Force PRO Front Surround |
| Sound Modes |
Auto Sound, Cinema, Music, Game Studio, News, Sports, Standard |
| Sound Effects |
Night Mode, Voice Mode |
| Connectivity |
HDMI In (2), HDMI Out (1, eARC), Optical Input (1), Analog Input (1/8" / 3.5 mm), USB-A (1), Ethernet, Bluetooth 4.2 (A2DP, AVRCP), Wi-Fi 4 (802.11a/b/g/n) |
| HDMI Features |
4K/60p/YUV4:4:4, HDR, Dolby Vision Compatible, HLG, HDCP 2.2, BRAVIA Sync, HDMI CEC |
| Audio Decoding |
DSD, DTS Digital Surround, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby Dual Mono, LPCM |
| USB Playback Formats |
DSD (.dsf/.diff), WAV, FLAC, ALAC (.m4a only), AIFF, HE AAC, AAC, MP3, Monkey Audio, WMA, Ogg Vorbis |
| Bluetooth Profiles |
A2DP, AVRCP |
| Bluetooth Codec Support |
SBC, AAC, LDAC |
| Wi-Fi |
Yes, Wi-Fi 4 (802.11a/b/g/n) |
| Chromecast Built-in |
Yes |
| Google Assistant Support |
Yes |
| Dimensions (Soundbar) |
39.4" x 2.5" x 3.9" (1000 x 64 x 99 mm) |
| Dimensions (Subwoofer) |
7.5" x 15.1" x 15.2" (190 x 382 x 386 mm) |
| Weight (Soundbar) |
6.8 lbs (3.1 kg) |
| Weight (Subwoofer) |
17.9 lbs (8.1 kg) |
| Color |
Black |
| Wall Mountable |
Yes, with supplied bracket |
| Power Consumption |
Soundbar: 52W; Subwoofer: 20W |
| Standby Power Consumption |
Soundbar: 2.4W; Subwoofer: 1W |
